How to Drill Into Tile, Concrete, and Metal Without Cracking or Wandering

Drilling into wood is forgiving. Drilling into tile, concrete, or metal is not — use the wrong bit, the wrong speed, or the wrong technique, and you'll crack a $12 tile, snap a bit, or watch your drill skate sideways across a steel bracket instead of biting in. The difference between a clean hole and a ruined surface almost always comes down to picking the right bit for the material and controlling speed and pressure correctly.

This guide is a quick-reference overview covering all three materials side by side. If you're working with just one of them and want the full deep-dive — checklists, troubleshooting, every technique detail — jump straight to the dedicated guide linked at the end of each section below.

Why the Wrong Bit Ruins Hard Surfaces

A standard twist bit designed for wood or softer metal has a pointed tip that concentrates force in one small spot. On tile and glass, that concentrated point creates a stress crack before the bit ever gets through. On concrete, a wood or metal bit simply can't survive the aggregate inside — it dulls or snaps almost immediately. Matching bit geometry to the material is what prevents both surface damage and tool failure.

Drilling Into Tile, Porcelain, and Glass

Tile cracks for one of two reasons: too much pressure applied too fast, or a bit tip that isn't designed to bite into a glazed, brittle surface. The fix for both is a diamond-coated bit and a slow, steady approach.

The Diamond Drill Bit Hole Saw is built specifically for this — the diamond-coated edge grinds through ceramic, porcelain, marble, and glass without the shattering force a pointed bit applies. Start at a low speed with light pressure, and if possible, keep the tip cool with a few drops of water as you work; heat buildup is what causes hairline cracks to spread across a tile face after the hole looks finished.

Tile Drilling Checklist

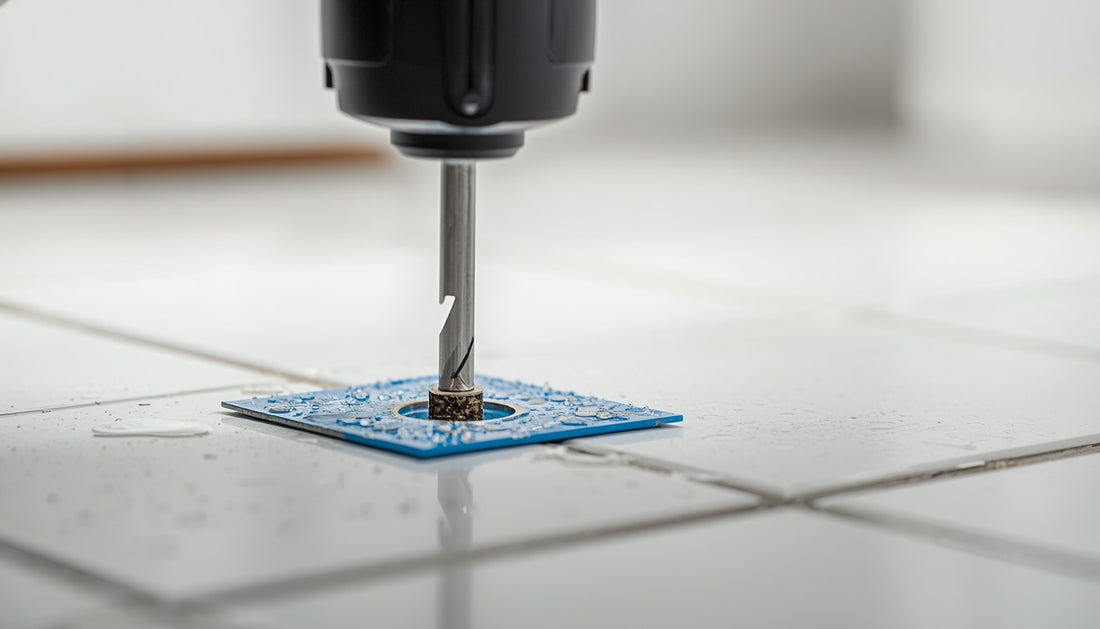

• Apply painter's tape over the drill point to stop the bit from skating on glazed tile
• Start at the lowest speed setting with no hammer function
• Let the diamond coating do the cutting — don't force the bit
• Pause periodically to let the bit cool, especially on porcelain

Working with glass or ceramic specifically? See the full glass and ceramic drilling guide for the complete technique, including how to support the material to prevent blowout cracks.

Drilling Into Concrete and Masonry

Concrete needs a completely different cutting action than tile. Instead of grinding, you need a bit that can chip through aggregate while resisting the abrasive wear that dulls ordinary steel almost instantly.

For general concrete and masonry work, a carbide-tipped bit set covers most jobs. The 7-Piece Carbide Serrated Drill Bit Set handles porcelain, marble, concrete, and stone in a single kit, which is useful if a project involves more than one hard material — tiling a shower surround with a concrete backer board, for example. For tougher masonry or tile that keeps skating before the bit can bite, the Sawtooth Eccentric Drill Bit uses an offset zigzag edge that grips the surface immediately instead of wandering across it.

Use a hammer drill function if your drill has one — concrete responds better to a combination of rotation and percussion than rotation alone. Keep the bit moving in and out periodically to clear dust, which otherwise builds up and causes the bit to bind and overheat.

Doing a masonry-heavy project? See the full masonry drilling guide for hammer drill settings, rebar troubleshooting, and a complete masonry checklist.

Drilling Into Metal

Metal drilling problems usually come down to one of two things: a bit that isn't hard enough for the material, or a bit that walks across the surface before it can start cutting.

For steel, aluminum, and other metals, a titanium-coated HSS bit holds an edge far longer than an uncoated one. The HUHAO 13-Piece Twist Drill Bit Set is titanium-coated to roughly HRC68 hardness, which matters when you're drilling repeatedly into steel brackets, hinges, or hardware without needing to swap bits every few holes.

Stop the Bit From Walking on Metal

Before drilling, use a center punch (or the tip of a nail and a hammer) to create a small dimple exactly where you want the hole. This gives the bit tip somewhere to seat immediately instead of skating across the smooth metal surface, which is the most common cause of scratched or misplaced holes in sheet metal and brackets.

Drilling stainless steel specifically? Stainless work-hardens under friction and needs different speed and pressure than mild steel — see the full stainless steel drilling guide.

Finishing the Hole: Countersinking

Once the hole is drilled, hardware often needs a countersunk seat so screw heads sit flush instead of proud of the surface — especially important on wood trim, cabinet backs, and any surface where a screw head sticking up would catch on something.

Rather than switching between a separate pilot bit and countersink bit, the Adjustable Countersink Drill Bit combines both in one pass with a carbide tip that holds up to repeated use. For wood-specific countersinking where you want a clean, single-pass pilot-and-countersink combo, the Woodworking Countersink Drill Bit does the same job optimized specifically for wood screws.

Matching Bit to Material: Quick Reference

Material	Best Bit Type	Speed	Key Technique
Tile / Porcelain / Glass	Diamond-coated hole saw	Low, no hammer	Tape the surface, keep the tip cool
Concrete / Masonry	Carbide-tipped or sawtooth eccentric	Medium, hammer mode	Clear dust frequently, let the bit do the work
Metal (steel, aluminum)	Titanium-coated HSS twist bit	Medium-high	Center-punch first to prevent walking
Wood (finish hardware)	Countersink / step drill bit	Medium	One-pass pilot and countersink

Common Mistakes That Crack or Ruin Surfaces

• Drilling too fast on tile — heat and pressure build up faster than the diamond coating can dissipate them, causing hairline cracks.
• Skipping the center punch on metal — the bit walks before it bites, leaving a scratched, off-position hole.
• Not clearing dust on concrete — packed dust insulates the bit tip, causing overheating and premature dulling.
• Using a wood bit on hard material — the tip dulls or snaps almost immediately and won't cut cleanly regardless of pressure applied.

Conclusion

Clean holes in tile, concrete, and metal come down to matching the bit to the material and respecting the technique each surface demands — slow and cool for tile, hammer action and dust clearing for concrete, and a center-punched starting point for metal. Keep a small set of dedicated bits for each material on hand, and hard-surface drilling stops being a gamble and becomes a predictable, repeatable part of any project.

Recommended Tools & Accessories

Diamond Drill Bit Hole Saw – 5-16mm Hex Shank, Dry Tile Drilling

Why it is relevant: Purpose-built for the exact failure point most DIYers hit — tile cracking under a standard bit.

Who it is best for: Anyone drilling into tile, porcelain, marble, or glass for towel bars, shelving brackets, or plumbing fixtures.

Main benefits: Clean holes without cracking, works dry without water cooling required, multiple sizes in one set.

Practical use case: Mounting a bathroom towel bar into finished porcelain tile without a single crack.

7-Piece Carbide Serrated Drill Bit Set – Dry Tile & Stone Drilling

Why it is relevant: Covers the widest range of hard surfaces in a single kit, useful for projects that mix materials.

Who it is best for: DIYers tackling bathroom or kitchen projects involving tile, stone, and concrete backer board in the same job.

Main benefits: One set for multiple hard materials, carbide edge resists dulling, dry drilling with no water needed.

Practical use case: Installing a shower niche that requires drilling through both tile and concrete board.

HUHAO 13-Piece Twist Drill Bit Set – HSS Titanium-Coated Metric Kit

Why it is relevant: Titanium coating holds an edge through repeated metal drilling that would dull an uncoated bit quickly.

Who it is best for: Anyone regularly drilling into steel brackets, hardware, or metal fixtures.

Main benefits: Long-lasting edge, full metric size range in one case, reliable performance on steel and aluminum.

Practical use case: Drilling mounting holes into a steel shelf bracket without stopping to swap or resharpen bits.

FAQ

Why does tile crack when I drill into it?

Tile cracks from excess pressure, high speed, or using a pointed bit not designed for brittle materials. A diamond-coated bit run at low speed with light, steady pressure avoids the stress that causes cracking.

Can I use a regular drill bit on concrete?

No. Standard twist bits dull or snap almost immediately in concrete. You need a carbide-tipped or masonry-rated bit, ideally paired with a hammer drill function.

Why does my drill bit slide across metal instead of drilling in?

The bit is walking because there's no starting point for it to grip. Center-punch the metal first to create a small dimple that seats the bit tip before you start drilling.

Do I need water when drilling tile?

Water helps keep the bit cool on long or repeated drilling sessions, but for occasional holes, taking it slow and pausing periodically to let the bit cool works fine without a water setup.

What's the difference between a countersink bit and a regular drill bit?

A countersink bit drills the pilot hole and shapes a conical recess in one pass, so a screw head sits flush with the surface instead of protruding. A regular bit only creates the straight hole.
