How to Install and Align Cabinet Doors and Drawers Like a Pro

Nothing kills the look of a fresh cabinet upgrade faster than a door that sags, a gap that's wider on one side than the other, or a drawer that rubs every time you open it. The good news: professional-looking results don't require professional experience. They require the right sequence of steps and a few tools that take the guesswork out of alignment.

This guide walks through the full process — from prepping your cabinet boxes to hanging doors, installing drawer slides, and fixing the most common alignment problems — using the same jigs and techniques cabinet installers rely on to work fast and solo.

What You'll Need Before You Start

• Cordless drill/driver and a manual screwdriver for fine control
• Tape measure, pencil, and a carpenter's square
• Concealed hinges (typically 35mm cup hinges for overlay doors)
• A hinge drilling jig or template
• Corner clamps or door-positioning clamps
• Drawer slides matched to your drawer box depth
• Magnetic screwdriver bits sized for your hardware screws

Skipping the jig is the single biggest mistake DIYers make. Freehand-marking hinge positions might work for one door, but the moment you're doing six or eight, tiny measurement drift adds up into doors that visibly don't match.

Step 1: Prep the Cabinet Boxes and Doors

Before any hardware goes on, make sure your cabinet boxes are square, level, and securely fastened to the wall or to each other. Any twist in the box will show up as a misaligned door no matter how carefully you install the hinges.

Clean the doors and face frames to remove dust, grease, or old hardware residue. If you're reusing old doors, fill any leftover screw holes with wood filler and let it cure fully before drilling new ones — drilling into unfilled holes is a common cause of hinges that won't hold.

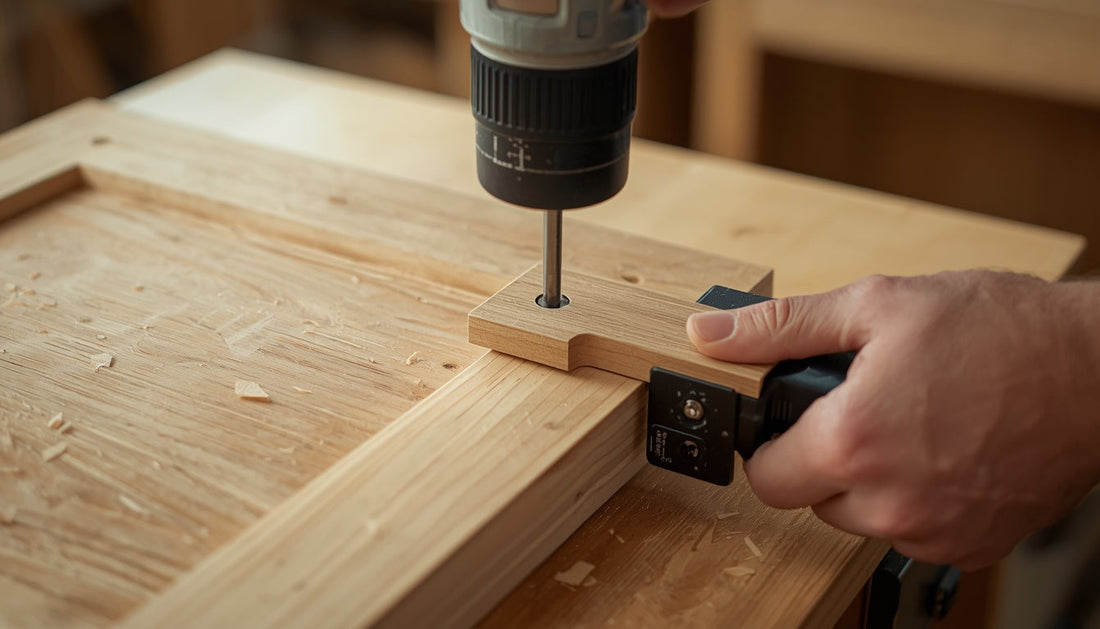

Step 2: Mark and Drill Hinge Cup Holes Accurately

This is where most alignment problems start — and where a jig pays for itself on the very first door. A drilling guide locates the hinge cup position and depth for you, so every door in the kitchen ends up with hinges in exactly the same spot.

For standard 35mm concealed hinges, the 35mm Concealed Hinge Jig Kit clamps onto the door edge and gives you a fixed, repeatable position for the drill bit, so the cup depth and hinge spacing stay identical from the first door to the last. If you're cutting hinge slots for European-style 3D adjustable hinges instead of cup hinges, the Concealed Hinge Router Jig does the same job with a router instead of a drill.

Drill pilot holes at a shallow depth first — about 1/4 inch — to avoid blowing through the face of the door, then follow with the full-depth hinge cup hole. Use a slower drill speed on hardwood to prevent burning or splintering the edges.

Step 3: Mount Hinges and Hang the Doors

Attach the hinges to the doors first, then mount the mounting plates to the cabinet frame. Getting a door to sit still while you check alignment and drive screws is the part most people struggle with alone — the door wants to tip, swing, or drop the moment you let go.

This is exactly the problem a door-positioning jig solves. The Cabinet Door Mounting Jig holds the door at the correct height and reveal against the cabinet frame while you drive the mounting screws, so you're not balancing a door with one hand and a drill with the other. For lower cabinets specifically, the 2-in-1 Cabinet Door Installation Jig combines positioning and drilling guidance in a single setup, which speeds up repetitive installs across a full run of cabinets.

If you're hanging upper cabinets or heavier doors solo, a support jack removes the need for a second pair of hands entirely. The Telescopic Cabinet Support Jack holds wall cabinets in place while you level and fasten them, and the Professional Panel Lifting Jack does the same for heavy doors and panels — both let you work at your own pace instead of rushing before your arms give out.

Driving Screws Without Stripping Them

Cabinet hardware screws are small, and stripped screw heads are one of the most frustrating setbacks in a DIY install — especially once a screw is partially seated. A magnetic bit keeps the driver centered and reduces cam-out, which is the main cause of stripping. The Magnetic Locating Screwdriver Bit self-centers over the screw head before you apply pressure, which matters a lot when you're driving dozens of small hinge and hardware screws in a single afternoon.

Step 4: Install Drawer Slides and Drawer Boxes

Drawer alignment has its own failure points, and they're different from door alignment. The most common issues are slides mounted at slightly different heights on each side, or slides that aren't parallel to each other — both cause a drawer to bind, drag, or sit crooked.

Rather than measuring and marking each slide by hand, a magnetic alignment jig holds the slide at the correct height and depth on both sides of the cabinet simultaneously. The Drawer Slide Installation Jig is built for exactly this — it locks onto the cabinet interior so both slides land level and parallel without a tape measure in sight.

Once the slides are mounted, you'll need to hold the drawer front square while you attach it to the drawer box — another two-handed job that's much easier with the right clamp. The IMBOT Drawer Mounting Clamps hold the front flush and square while you mark, drill, and fasten, and the compact 2-Piece Drawer Front Installation Clamps work well for tighter cabinet openings where a full-size clamp won't fit.

Step 5: Fine-Tune the Alignment

Almost every concealed hinge has three adjustment screws: depth (how far the door sits from the frame), height (vertical position), and side-to-side (the gap between doors). Walk the full run of cabinets and check for:

• Even gaps between adjacent doors
• Doors sitting flush with neighboring doors at the same height
• Smooth open-and-close motion with no binding
• Drawers that glide fully in and out without dragging on one side

Adjust in small increments — a quarter turn at a time — and recheck before making further changes. Chasing a gap by overcorrecting is how doors end up worse than when you started.

Fixing the Most Common Problems

Problem	Likely Cause	Fix
Door sags or drops over time	Screws driven into stripped or oversized holes	Fill holes with wood filler or glued toothpicks, redrill, and reinstall
Uneven gap between two doors	Hinge cup holes drilled at slightly different depths	Redo one door's hinge holes using a drilling jig for consistency
Drawer drags on one side	Slides mounted at different heights	Remove and reinstall using a slide alignment jig
Door won't close flush	Cabinet box isn't square	Check and correct box squareness before adjusting hinges further

Conclusion

Installing and aligning cabinet doors and drawers isn't complicated once you understand where alignment problems actually come from — inconsistent hinge positioning, unsupported doors during mounting, and slides that aren't level with each other. Jigs and clamps exist specifically to remove that variability, which is why professional installers use them even after years of experience. With the right prep and the right hardware on hand, a full kitchen's worth of doors and drawers is a very achievable weekend project.

Recommended Tools & Accessories

Cabinet Door Mounting Jig – 3-in-1 Adjustable Aluminum Alloy Positioner

Why it is relevant: Solves the exact problem most DIYers hit when hanging doors alone — holding the door steady and correctly positioned while driving mounting screws.

Who it is best for: Homeowners and DIYers installing or replacing multiple cabinet doors without a helper.

Main benefits: Holds correct reveal and height automatically, speeds up repetitive installs, reduces measuring errors across a full kitchen.

Practical use case: Hanging a full run of lower cabinet doors solo on a weekend kitchen refresh.

35mm Concealed Hinge Jig Kit – Hole Drilling Guide with Fixture

Why it is relevant: Hinge cup drilling accuracy is the root cause of most uneven-gap complaints — this jig standardizes the position and depth for every door.

Who it is best for: Anyone installing standard 35mm concealed hinges on new or replacement cabinet doors.

Main benefits: Repeatable hinge placement, consistent cup depth, fewer redos.

Practical use case: Drilling hinge holes on eight matching upper cabinet doors so every gap lines up identically.

Drawer Slide Installation Jig – Magnetic Alignment Tool with Carry Bag

Why it is relevant: Drawer drag and binding almost always trace back to slides mounted at different heights — this jig locks both sides level at once.

Who it is best for: DIYers replacing drawer boxes or upgrading to soft-close slides.

Main benefits: No tape measure needed, both slides land level and parallel, faster than marking each side by hand.

Practical use case: Installing new full-extension slides across an entire kitchen island without a single crooked drawer.

Related Guides

• Concealed Hinges Explained: 35mm Cup vs 3D Adjustable — choosing the right hinge type before you drill
• How to Fix a Sagging Cabinet Door in 15 Minutes — the fast fix if a door starts drooping down the line
• How to Install Kitchen Cabinets by Yourself: The Complete Guide — the full-kitchen version of this process, box installation included

FAQ

Can I install cabinet doors and drawers by myself?

Yes. The main challenge is holding heavy or awkward pieces steady while you drill and fasten. Support jacks and positioning jigs are built specifically to replace the second pair of hands a two-person install would normally need.

Why is my cabinet door sagging after installation?

Sagging is almost always caused by screws driven into holes that are stripped, oversized, or drilled into unfilled old holes. Fill and redrill the holes, then reinstall the hinge screws so they have solid material to bite into.

What size hinges do I need for cabinet doors?

Most residential cabinets use 35mm concealed cup hinges, but the correct overlay (full, half, or inset) depends on how much the door covers the cabinet frame. Measure your existing hardware or check your cabinet manufacturer's spec before ordering replacements.

How do I stop cabinet drawers from dragging?

Dragging usually means the slides aren't level with each other or aren't parallel. Remove the slides and reinstall using an alignment jig, or add thin shims behind the lower slide until the drawer moves freely.

Do I need a jig to install cabinet hardware, or can I measure by hand?

You can measure by hand for a single door, but the error compounds fast across multiple doors and drawers. A jig is what keeps installations looking uniform across a full kitchen instead of slightly-off door by slightly-off door.
