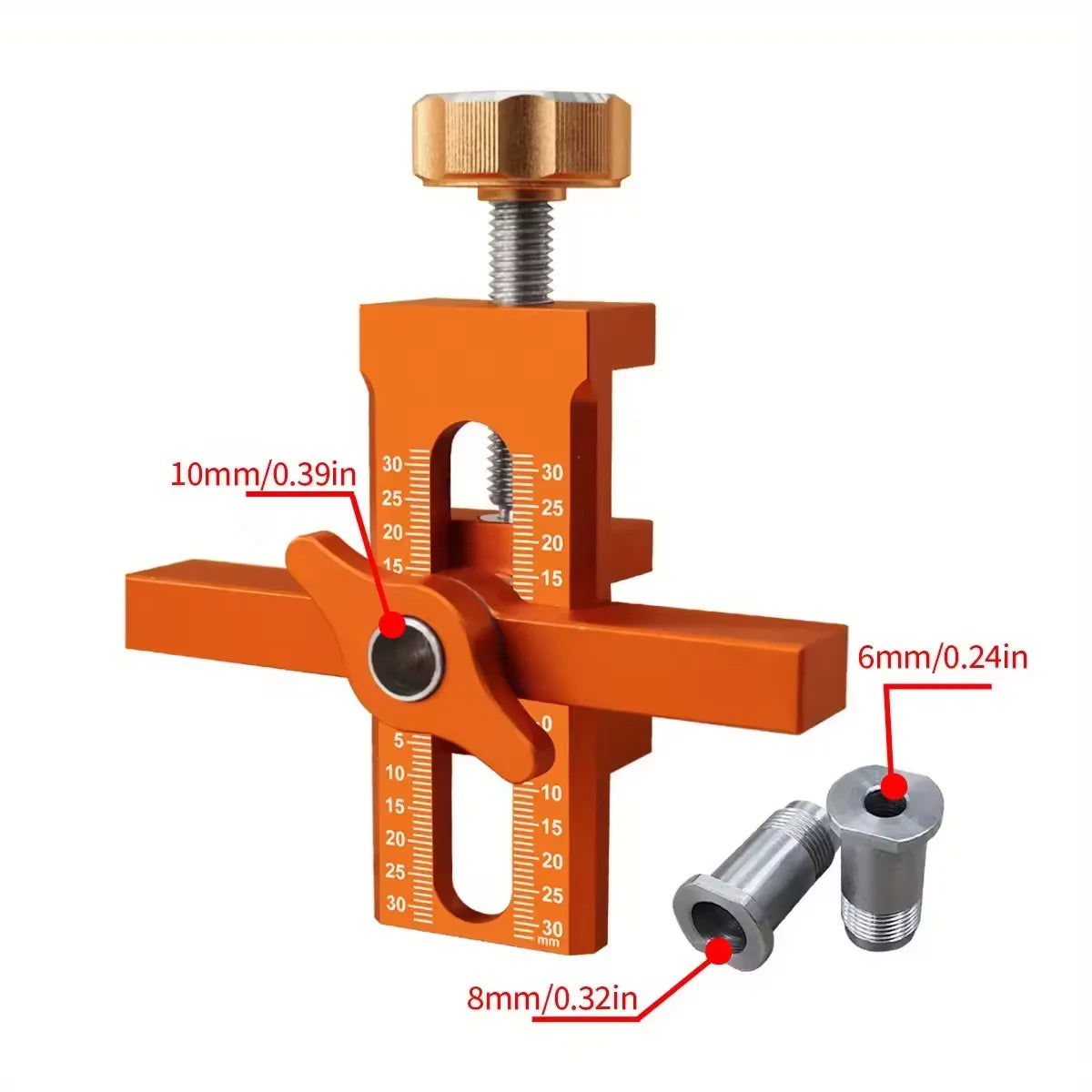

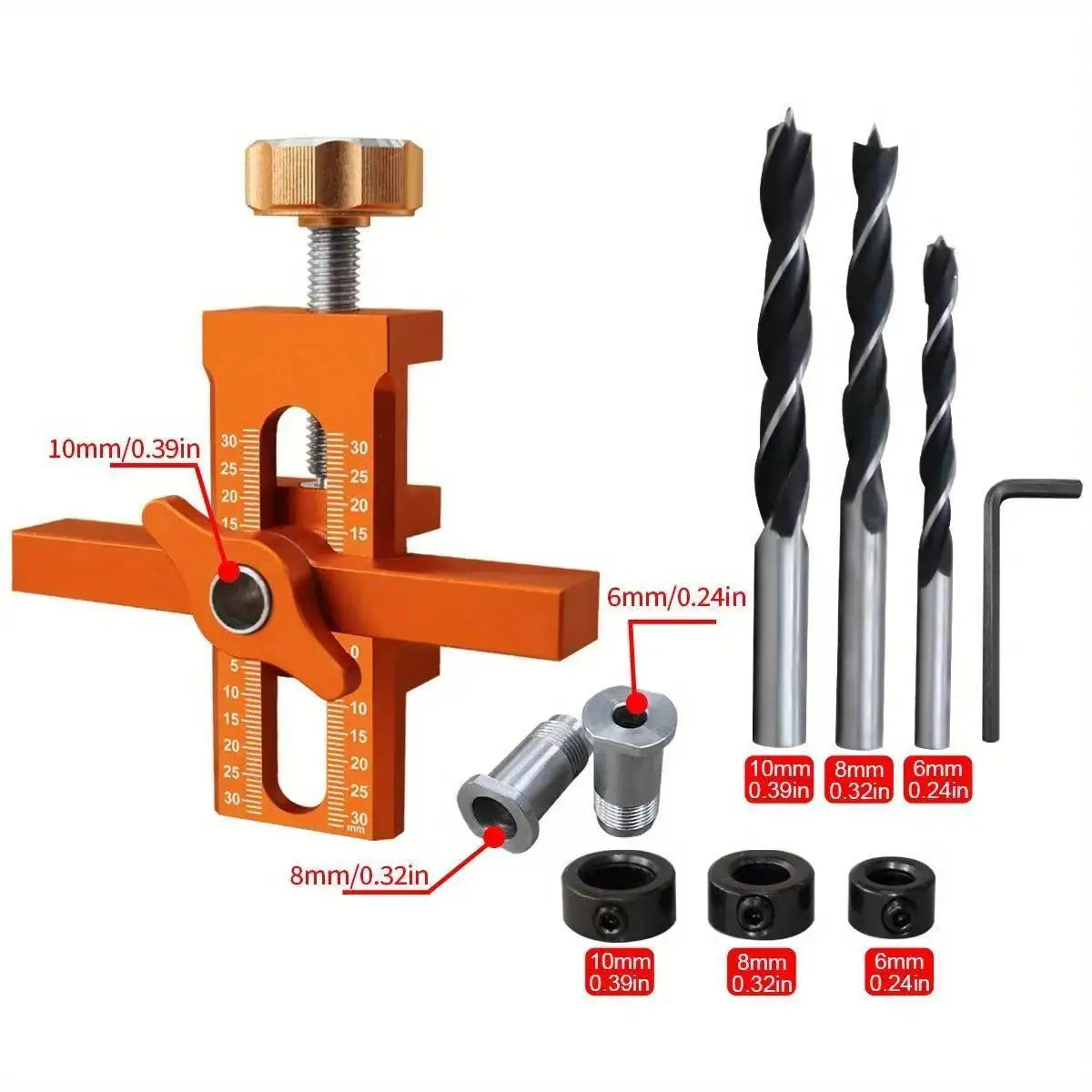

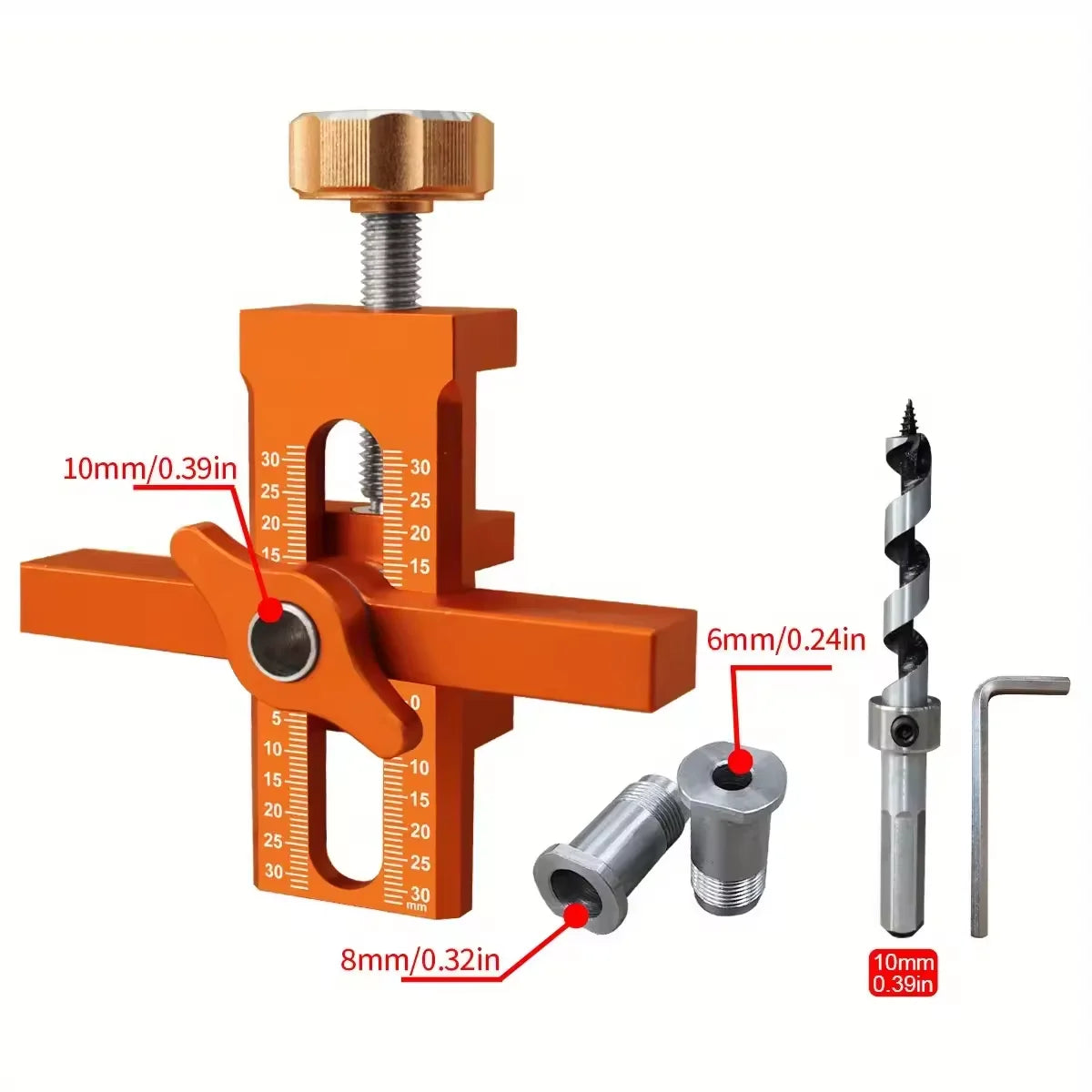

Cabinet Door Installation Jig – 2-in-1 Quick-Positioning Drilling Tool

Precision and Efficiency for Professional Installations

This 2-in-1 door jig is an essential tool for carpenters and installers who need precision, speed, and practicality when installing cabinet doors and panels. It combines installation, drilling, and assembly functions in one robust, reliable device.

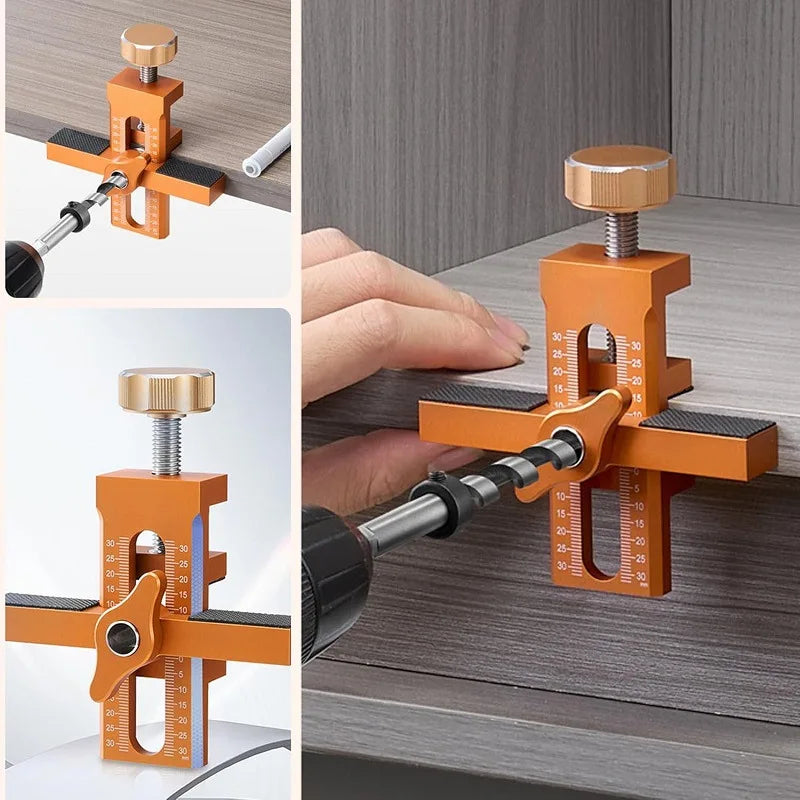

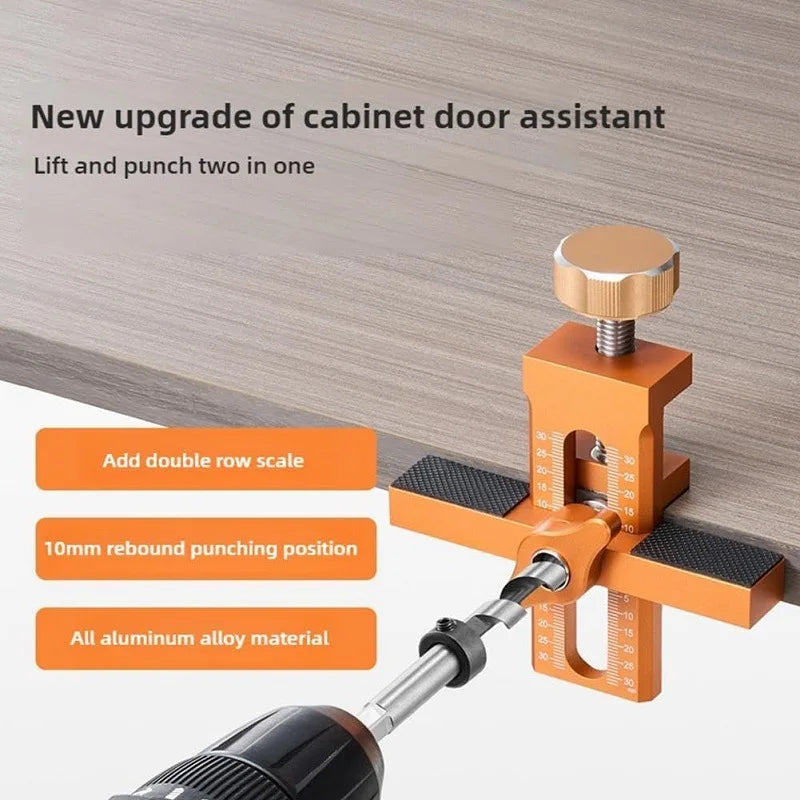

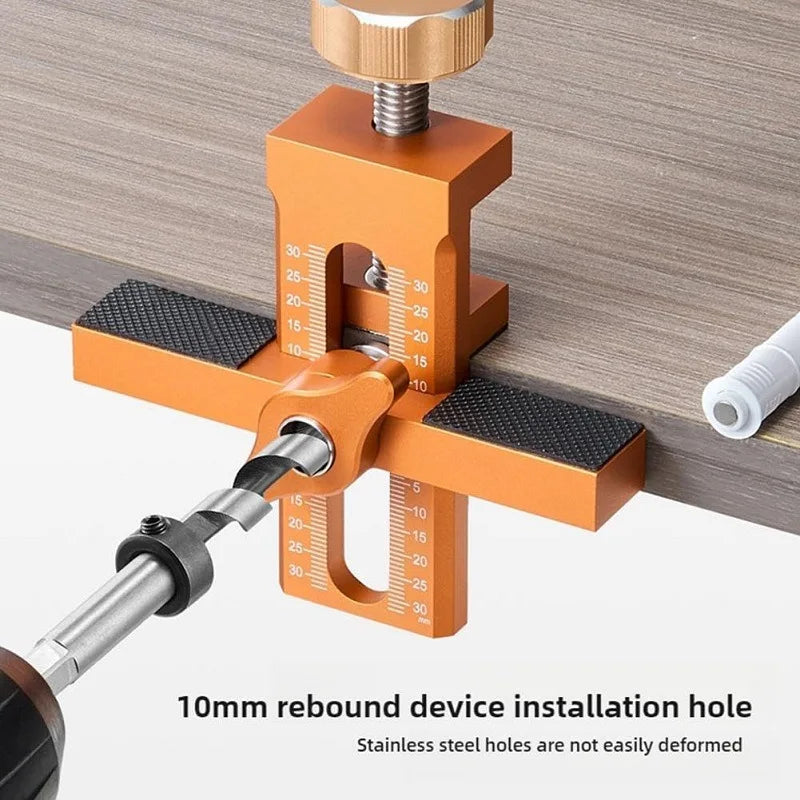

• Ideal for cabinet door and panel assembly, plus drilling for push-latch hardware
• Flexible clamping: supports single layers up to 20mm and double layers up to 40mm
• Vertical adjustment from 0 to 55mm, compatible with 7-40mm material thicknesses
• Bidirectional (positive/negative) measurement scale for exact positioning on either side of the workpiece

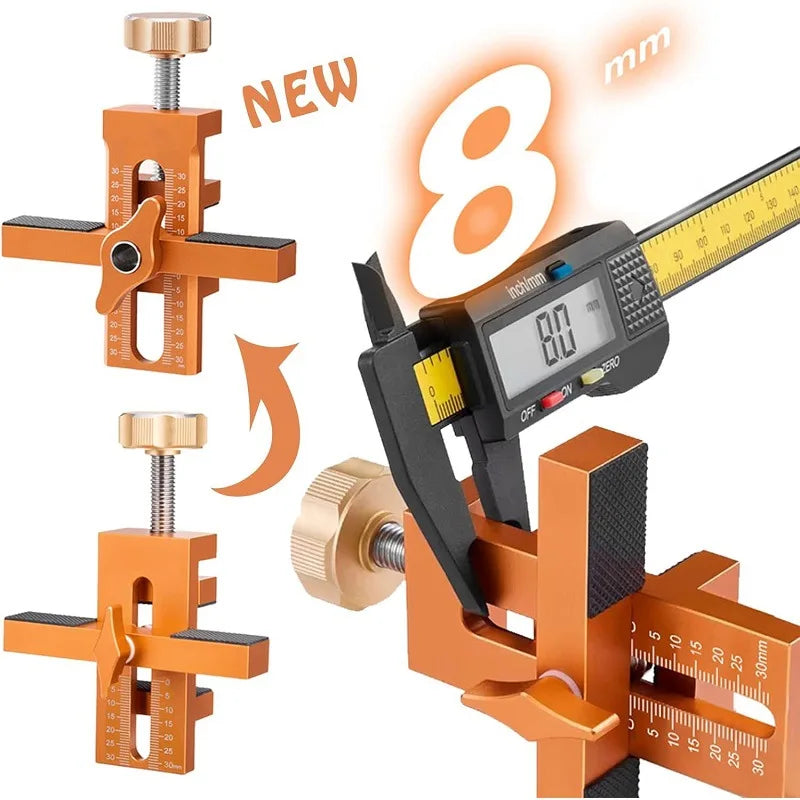

• Robust 8mm high-strength aluminum alloy construction resists deformation and wear
• Includes non-slip pads to protect surfaces during use

Technical Specifications

• Material: high-strength aluminum alloy, 8mm thick
• Vertical adjustment range: 0-55mm
• Supported thickness: 7-40mm
• Maximum double-layer clamping: 40mm
• Applications: cabinet door installation, panel assembly, push-latch drilling
